Project 5 8 unwraps of objects

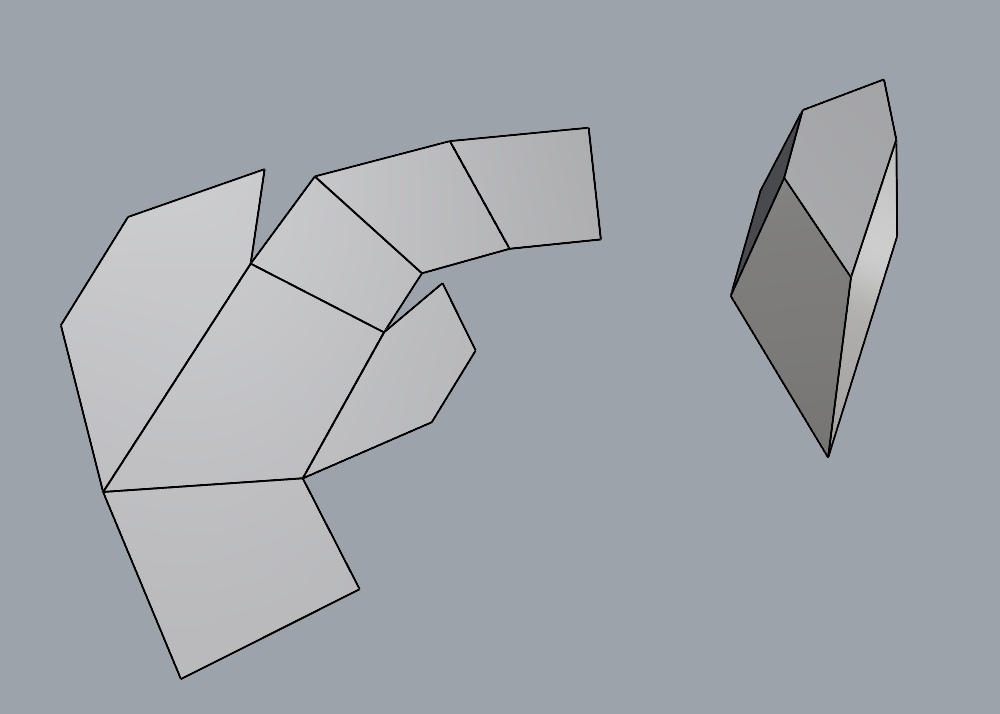

8 unwraps of an object.

I found a error that the ground plane would move around and rotate to whatever I select. But I found out that in the bottom theres a button called Auto Cplane and I acidently enabled that

Another error I had is that the unroll command would spread all the faces out disconected.

I had a little bit of trouble making it unroll flat, but I found out you can make sure its flat by making sure your only selecting points on one poligon when you rotate.
___________________________________________________________________________________

___________________________________________________________________________________

___________________________________________________________________________________

___________________________________________________________________________________

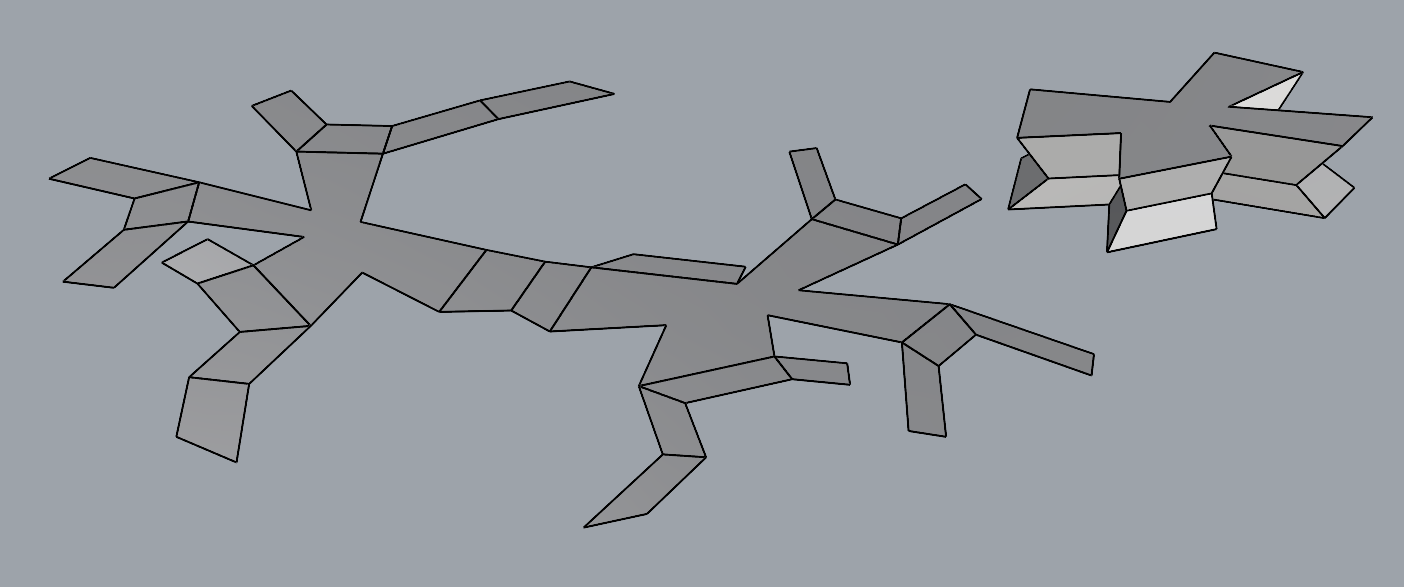

This one I did 2 different unwraps, for the one in the top right I found its faster to just copy the parts, then move and rotate with osnaps.
___________________________________________________________________________________

___________________________________________________________________________________

This one I struggled a bit cause the big polygons cut into the triangles a little bit, because the triangles dont unroll in a straight line they unroll with a little bit of zig zah
___________________________________________________________________________________

___________________________________________________________________________________
